Logistic Regression

STAT 220

Bastola

Classification using simple logistic regression

  • Goal: Understand why logistic regression is used for categorical outcomes.
  • Context: Traditional linear regression is limited to continuous outcomes.
  • Solution: Logistic regression models the probability of a categorical outcome.

Why Not Linear Regression?

  • Issue with categorical outcomes: Predictions can fall outside the \([0,1]\) range.
  • Consequence: Nonsensical probability predictions for binary outcomes \((Y=0\text{ or }Y=1)\)).

Introduction to Logistic Regression

  • Solution: Transform the outcome into a format that linear regression can handle.
  • Method: Model the log odds of the probability of success versus failure.

From Probability to Odds

  • Probability: Chance of success (\(Y=1\)) over total possibilities. \[P(Y=1)=\frac{\text { number of successes }}{\text { total trials }}\]
  • Odds: Ratio of the probability of success to the probability of failure. \[Odds =\frac{P(Y=1)}{1-P(Y=1)}\]

Logit Transformation

  • Goal: Convert odds to a continuous scale that can span negative to positive infinity.
  • Logit Function: Natural logarithm of the odds. \[\log \left(\frac{P(Y=1)}{1-P(Y=1)}\right)\]
  • Why? Makes it possible to use linear regression techniques.

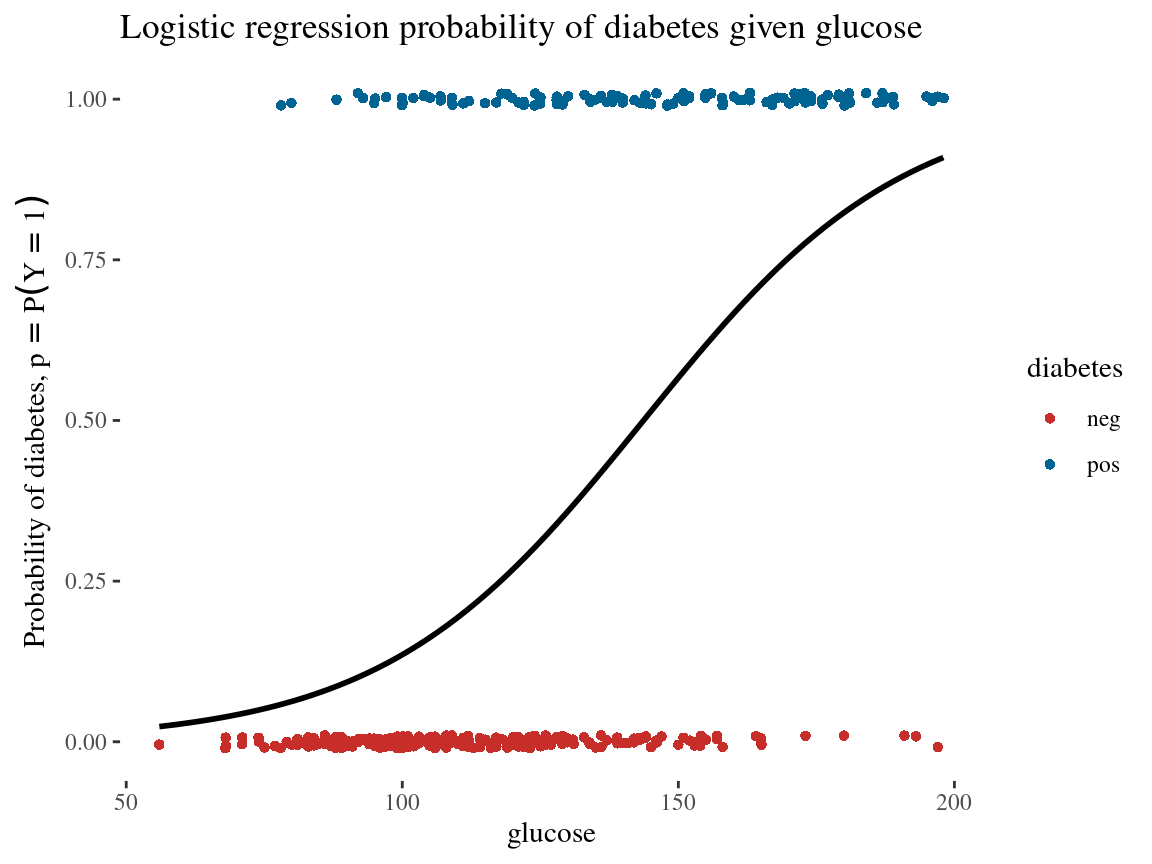

  • Binary response, \(Y\), with an explanatory (predictor, features) variables, \(X_1\).
  • We model the probability that \(Y\) belongs to a particular category.

\[P(Y = 1 ) = \frac{e^{\beta_0 + \beta_1X_1}}{1 + e^{\beta_0 + \beta_1X_1}}\]

\[\text{Odds} = \frac{P(Y = 1 )}{1 - P(Y = 1 )} = e^{\beta_0 + \beta_1X_1}\]

\[\text{Log Odds} = \beta_0 + \beta_1X_1\]

# Create data split for train and test
set.seed(12345) # Ensures reproducibility of the data split
db_single <- db %>%
  select(diabetes, glucose) %>%
  # Relevels 'diabetes' factor to ensure 'neg' comes before 'pos'
  mutate(diabetes = fct_relevel(diabetes, c("neg", "pos")))
db_split <- initial_split(db_single, prop = 0.80)
db_train <- db_split %>% training()
db_test <- db_split %>% testing()
set.seed(12345)
fitted_logistic_model <- logistic_reg(engine = "glm",
                                      mode = "classification") %>%
  fit(diabetes~., data = db_train)

Tidy the Summary

broom::tidy(fitted_logistic_model)
# A tibble: 2 × 5
  term        estimate std.error statistic  p.value
  <chr>          <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)  -5.61     0.678       -8.28 1.20e-16
2 glucose       0.0392   0.00514      7.62 2.55e-14

\[\log \left(\frac{p}{1-p}\right)=-5.61+0.0392 \cdot \text { glucose }\]

Where \(p = P(Y = 1)\) is the probability of having diabetes

Interpreting Coefficients: Log Odds

  • Coefficient Meaning: Change in log odds of the outcome for a one-unit increase in the predictor.

A coefficient of 0.0392 for glucose means…

…a one-unit increase in glucose level increases the log odds of diabetes by 0.0392.

Exponentiating Coefficients: Odds Ratios

\[Odds = \frac{probability}{1 - probability}\]

broom::tidy(fitted_logistic_model, exponentiate = TRUE)
# A tibble: 2 × 5
  term        estimate std.error statistic  p.value
  <chr>          <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)  0.00364   0.678       -8.28 1.20e-16
2 glucose      1.04      0.00514      7.62 2.55e-14

\[\text { Odds }=0.00364 \times(1.04)^{\text {glucose }}\]

An odds ratio of 1.04 means that for each additional unit of glucose, the odds of having diabetes increase by 4%.

Understanding Odds Ratios: Summary

  • Transformation: Turning log-odds coefficients into odds ratios.
  • Odds Ratio \(=e^{\beta_i}\)
  • Interpretation: For each unit increase in the predictor, the odds multiply by the odds ratio.

Importance of Scaling and Centering

db_recipe <- recipe(diabetes ~ ., data = db_train) %>%
  step_scale(all_numeric_predictors()) %>%
  step_center(all_numeric_predictors()) %>%
  prep()
  • Ensures all features contribute equally to model calculations.
  • Helps gradient descent algorithms converge more quickly.
  • Standardizes coefficient scales, improving model interpretability.

 Group Activity 1


  • Please clone the ca24-yourusername repository from Github
  • Please do problem 1 in the class activity for today

10:00

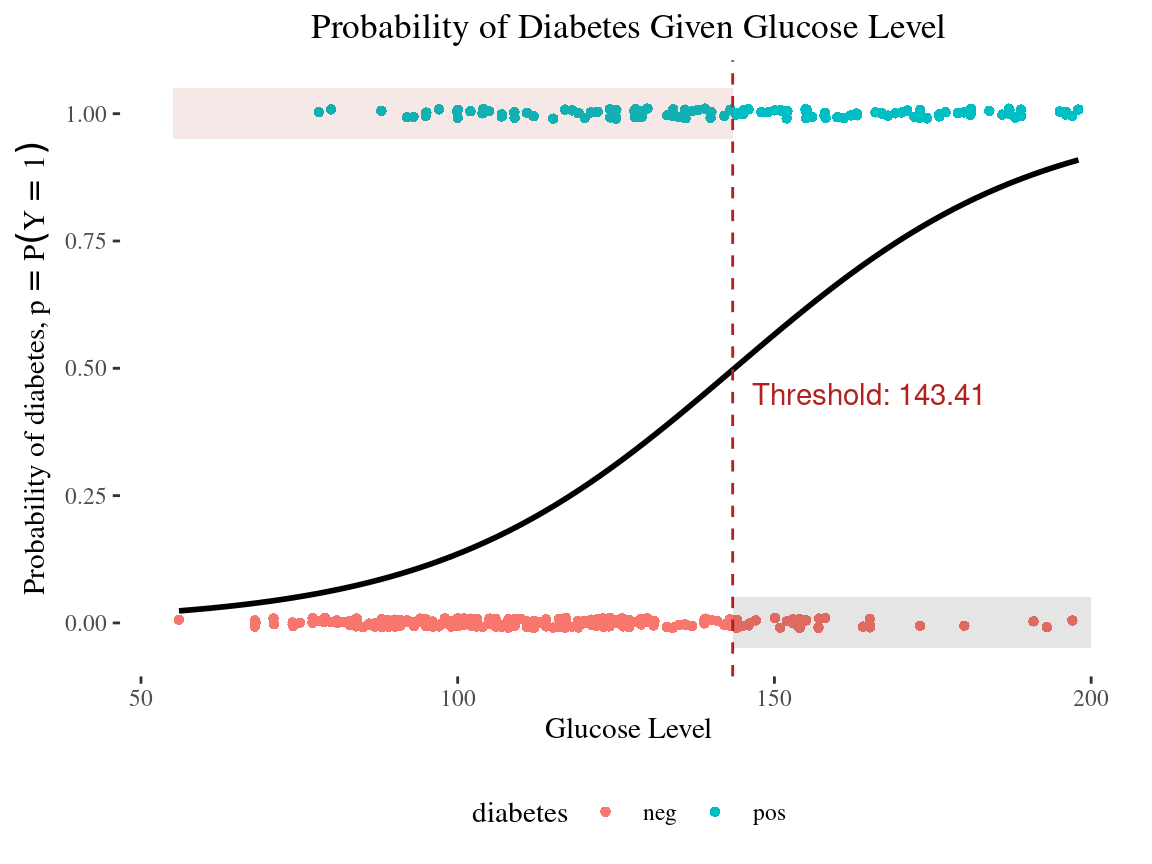

Threshold for classification

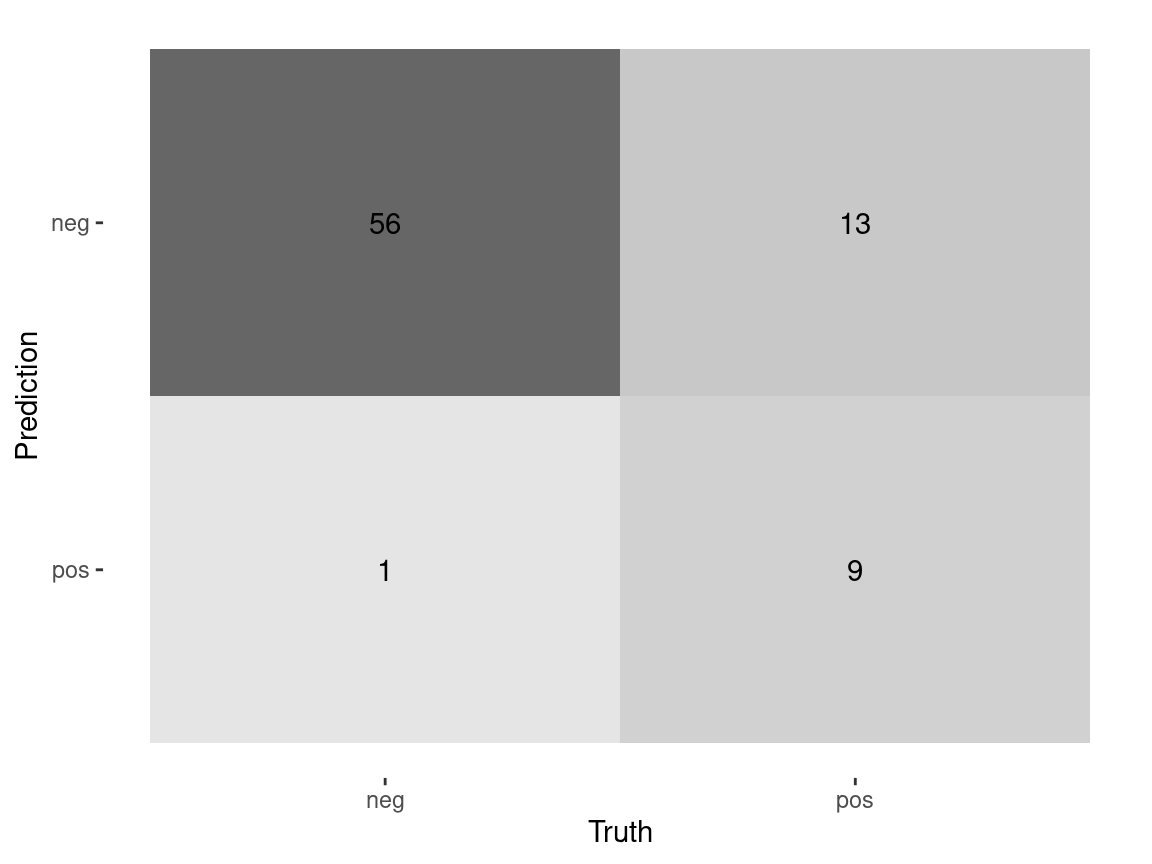

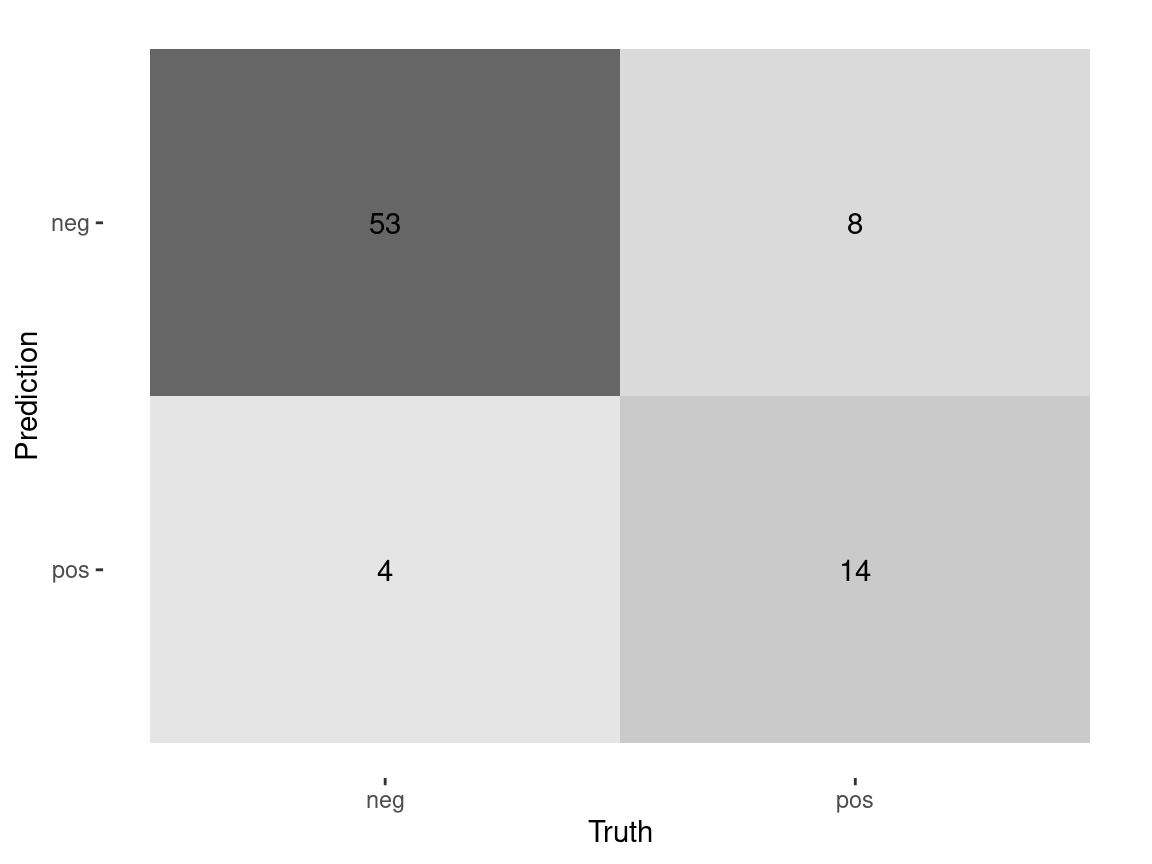

Class Prediction

set.seed(12345)
pred_class <- predict(fitted_logistic_model,  new_data = db_test)
bind_cols(db_test %>% select(diabetes), pred_class) %>%
  conf_mat(diabetes, .pred_class) %>% # confusion matrix
  autoplot(type = "heatmap") # with graphics

Class Probabilities with threshold = 0.30

# Prediction Probabilities
library(probably)
pred_prob <- predict(fitted_logistic_model,
                     new_data = db_test,
                     type = "prob")

db_results <- db_test %>% bind_cols(pred_prob) %>%
  mutate(.pred_class = make_two_class_pred(.pred_neg,
                                           levels(diabetes),
                                           threshold = .30)) %>%
  select(diabetes, glucose, contains(".pred"))
    diabetes glucose .pred_neg  .pred_pos .pred_class
25       pos     143 0.5040090 0.49599103         neg
52       neg     101 0.8402912 0.15970881         neg
60       neg     105 0.8181391 0.18186086         neg
64       neg     141 0.5235673 0.47643271         neg
69       neg      95 0.8693592 0.13064080         neg
83       neg      83 0.9141287 0.08587128         neg
98       neg      71 0.9445349 0.05546507         neg
110      pos      95 0.8693592 0.13064080         neg
135      neg      96 0.8648480 0.13515203         neg
143      neg     108 0.8000067 0.19999330         neg

Custom Metrics

custom_metrics <- metric_set(accuracy,
                             sensitivity,
                             specificity,
                             ppv)
custom_metrics(db_results,
               truth = diabetes,
               estimate = .pred_class)
# A tibble: 4 × 3
  .metric     .estimator .estimate
  <chr>       <chr>          <dbl>
1 accuracy    binary         0.823
2 sensitivity binary         0.982
3 specificity binary         0.409
4 ppv         binary         0.812

Class Probabilities with threshold = 0.70

# Prediction Probabilities
library(probably)
pred_prob <- predict(fitted_logistic_model,
                     new_data = db_test,
                     type = "prob")

db_results <- db_test %>% bind_cols(pred_prob) %>%
  mutate(.pred_class = make_two_class_pred(.pred_neg,
                                           levels(diabetes),
                                           threshold = .70)) %>%
  select(diabetes, glucose, contains(".pred"))
    diabetes glucose .pred_neg  .pred_pos .pred_class
25       pos     143 0.5040090 0.49599103         pos
52       neg     101 0.8402912 0.15970881         neg
60       neg     105 0.8181391 0.18186086         neg
64       neg     141 0.5235673 0.47643271         pos
69       neg      95 0.8693592 0.13064080         neg
83       neg      83 0.9141287 0.08587128         neg
98       neg      71 0.9445349 0.05546507         neg
110      pos      95 0.8693592 0.13064080         neg
135      neg      96 0.8648480 0.13515203         neg
143      neg     108 0.8000067 0.19999330         neg

Custom Metrics

custom_metrics <- metric_set(accuracy,
                             sensitivity,
                             specificity,
                             ppv)
custom_metrics(db_results,
               truth = diabetes,
               estimate = .pred_class)
# A tibble: 4 × 3
  .metric     .estimator .estimate
  <chr>       <chr>          <dbl>
1 accuracy    binary         0.785
2 sensitivity binary         0.754
3 specificity binary         0.864
4 ppv         binary         0.935

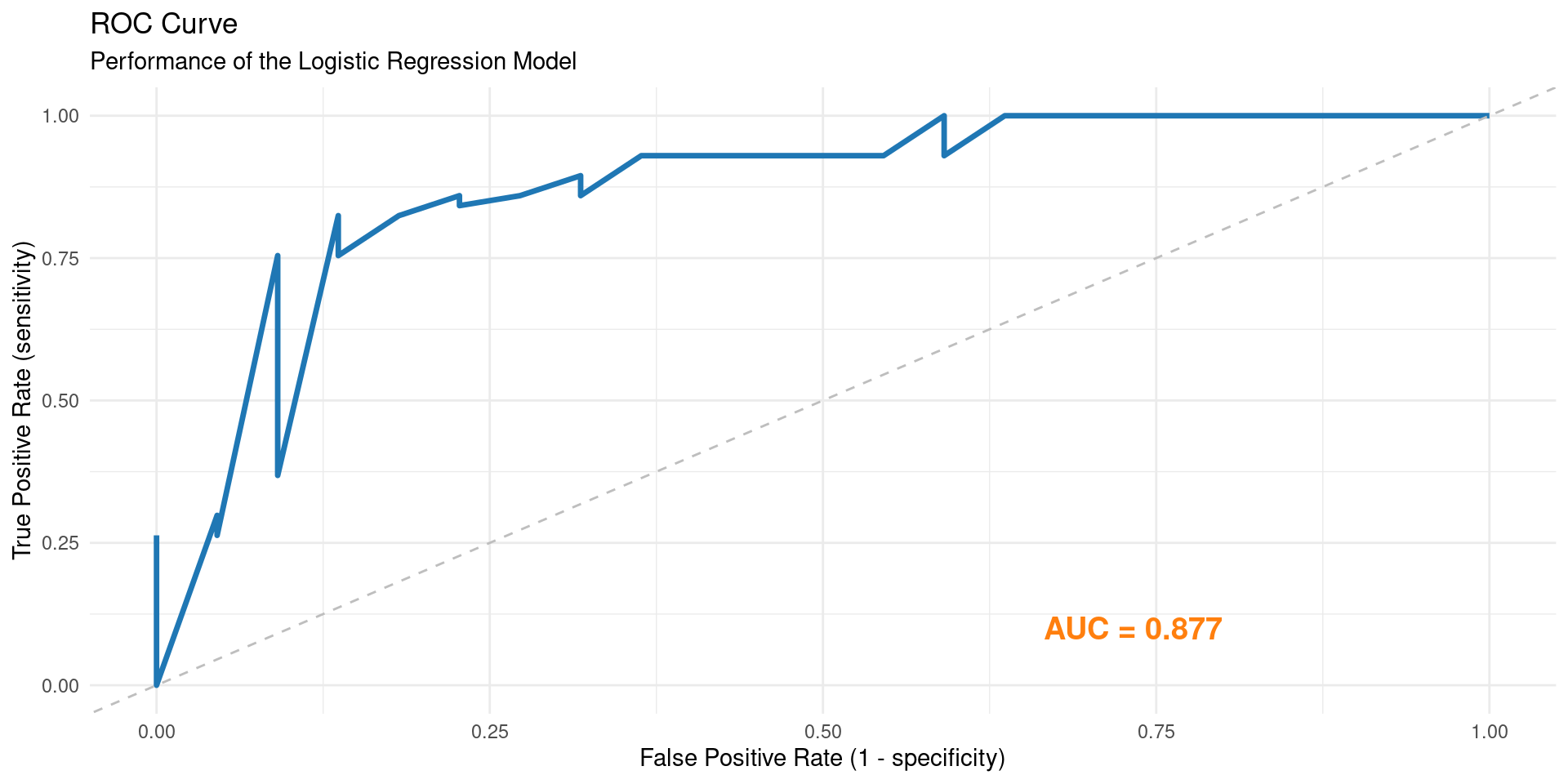

library(yardstick)

diabetes_prob <- predict(fitted_logistic_model, db_test, type = "prob")
diabetes_results <- db_test %>% select(diabetes) %>% bind_cols(diabetes_prob)

diabetes_results %>%
  roc_curve(truth = diabetes, .pred_neg) %>%
  ggplot(aes(x = 1 - specificity, y = sensitivity)) +
  geom_line(color = "#1f77b4", size = 1.2) +
  geom_abline(linetype = "dashed", color = "gray") +
  annotate("text", x = 0.8, y = 0.1, label = paste("AUC =", round(roc_auc(diabetes_results, truth = diabetes, .pred_neg)$.estimate, 3)), hjust = 1, color = "#ff7f0e", size = 5, fontface = "bold") +
  labs(title = "ROC Curve", subtitle = "Performance of the Logistic Regression Model", x = "False Positive Rate (1 - specificity)", y = "True Positive Rate (sensitivity)") +
  theme_minimal()

Exact Optimal Threshold

# Compute the ROC curve
roc_curve(diabetes_results, truth = diabetes, .pred_neg)
# A tibble: 58 × 3
   .threshold specificity sensitivity
        <dbl>       <dbl>       <dbl>
 1   -Inf          0                1
 2      0.106      0                1
 3      0.113      0.0455           1
 4      0.154      0.0909           1
 5      0.159      0.182            1
 6      0.187      0.227            1
 7      0.193      0.273            1
 8      0.199      0.318            1
 9      0.218      0.364            1
10      0.239      0.409            1
# ℹ 48 more rows

Exact Optimal Threshold

# Compute the ROC curve
roc_curve(diabetes_results, truth = diabetes, .pred_neg) %>%
# Look for the point where specificity is 0.87 and sensitivity is 0.76
  arrange(abs(specificity - (1 - 0.13)), abs(sensitivity - 0.76))
# A tibble: 58 × 3
   .threshold specificity sensitivity
        <dbl>       <dbl>       <dbl>
 1      0.706       0.864       0.754
 2      0.698       0.864       0.772
 3      0.690       0.864       0.807
 4      0.681       0.864       0.825
 5      0.714       0.909       0.754
 6      0.738       0.909       0.737
 7      0.745       0.909       0.719
 8      0.760       0.909       0.702
 9      0.767       0.909       0.684
10      0.774       0.909       0.667
# ℹ 48 more rows

Exact Optimal Threshold

# Compute the ROC curve
roc_curve(diabetes_results, truth = diabetes, .pred_neg) %>%
# Find point where specificity is 0.87 and sensitivity is 0.76
  arrange(abs(specificity - (1 - 0.13)), abs(sensitivity - 0.76)) %>%
  slice(1)
# A tibble: 1 × 3
  .threshold specificity sensitivity
       <dbl>       <dbl>       <dbl>
1      0.706       0.864       0.754

 Group Activity 2



  • Please finish the remaining problems in the class activity for today

10:00
