Decision Trees and Random Forest

STAT 220

Bastola

Decision Tree

A decision tree algorithm learns by repeatedly splitting the dataset into increasingly smaller subsets to accurately predict the target value.

  • Data is continuously split according to a certain parameter

  • Two main entities:

    • nodes: where the data is split
    • leaves: decisions or final outcomes

Decision Tree

Use features to make subsets of cases that are as similar (“pure”) as possible with respect to the outcome

  • Start with all observations in one group
  • Find the variable/feature/split that best separates the outcome
  • Divide the data into two groups (leaves) on the split (node)
  • Within each split, find the best variable/split that separates the outcomes
  • Continue until the groups are too small or sufficiently “pure”

Data preparation and pre-processing

data(PimaIndiansDiabetes2)
db <- PimaIndiansDiabetes2 %>% drop_na() %>%
  mutate(diabetes = fct_relevel(diabetes, c("neg", "pos")))

set.seed(314)

db_split <- initial_split(db, prop = 0.75)
db_train <- db_split %>% training()
db_test <- db_split %>% testing()

# scaling not needed
db_recipe <- recipe(diabetes ~ ., data = db_train) %>%
 step_dummy(all_nominal(), -all_outcomes())

Model Specification

  • cost_complexity: The cost complexity parameter, the minimum improvement in the model needed at each node
  • tree_depth: The maximum depth of a tree
  • min_n: The minimum number of data points in a node that are required for the node to be split further.
tree_model <- decision_tree(cost_complexity = tune(),
                            tree_depth = tune(),
                            min_n = tune()) %>%
              set_engine('rpart') %>%
              set_mode('classification')

Workflow and Hyperparameter tuning

# Combine the model and recipe into a workflow
tree_workflow <- workflow() %>%
                 add_model(tree_model) %>%
                 add_recipe(db_recipe)

# Create folds for cross validation on the training data set
db_folds <- vfold_cv(db_train, v = 5, strata = diabetes)

## Create a grid of hyperparameter values to optimize
tree_grid <- grid_random(cost_complexity(),
                          tree_depth(),
                          min_n(),
                          size = 10)

View grid

tree_grid
# A tibble: 10 × 3
   cost_complexity tree_depth min_n
             <dbl>      <int> <int>
 1        5.28e-10          7    40
 2        2.99e- 6          3     7
 3        1.30e- 8          1    17
 4        1.94e- 2         13    19
 5        1.74e- 7         11    22
 6        8.11e- 7          6     3
 7        2.41e- 6          4    10
 8        1.01e- 5         14    40
 9        2.38e- 2          4    18
10        2.68e- 6         15    39

Tuning Hyperparameters with tune_grid()

# Tune decision tree workflow
set.seed(314)
tree_tuning <- tree_workflow %>%
               tune_grid(resamples = db_folds,
                         grid = tree_grid)

# Select best model based on accuracy
best_tree <- tree_tuning %>%
             select_best(metric = 'accuracy')

# View the best tree parameters
best_tree
# A tibble: 1 × 4
  cost_complexity tree_depth min_n .config
            <dbl>      <int> <int> <chr>
1        5.28e-10          7    40 Preprocessor1_Model01

Finalize workflow and fit the model

final_tree_workflow <- tree_workflow %>% finalize_workflow(best_tree)
tree_wf_fit <- tree_workflow %>% finalize_workflow(best_tree) %>%  fit(data = db_train)
tree_fit <- tree_wf_fit %>%  extract_fit_parsnip()

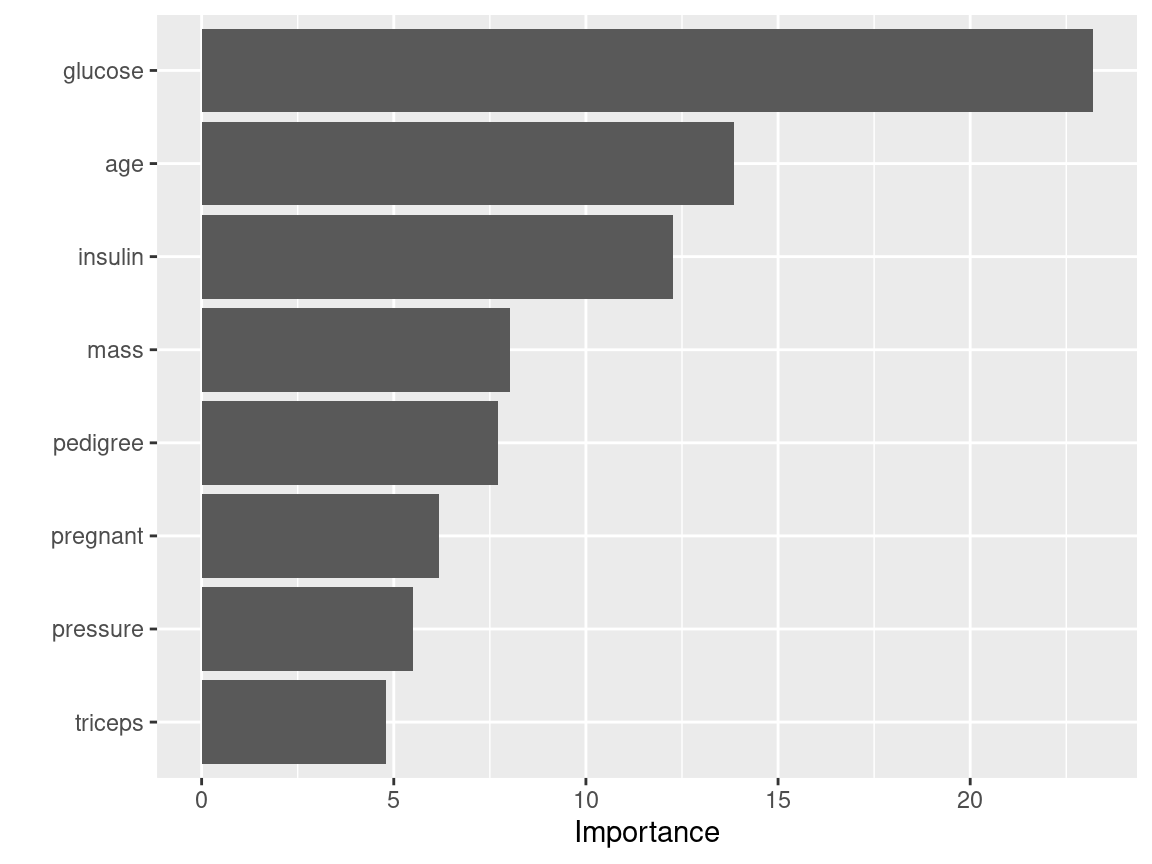

vip(tree_fit)

Plot the tree

rpart.plot(tree_fit$fit, roundint = FALSE)

Train and Evaluate With last_fit()

tree_last_fit <- final_tree_workflow %>%
                 last_fit(db_split)

tree_last_fit %>% collect_metrics()
# A tibble: 3 × 4
  .metric     .estimator .estimate .config
  <chr>       <chr>          <dbl> <chr>
1 accuracy    binary         0.765 Preprocessor1_Model1
2 roc_auc     binary         0.824 Preprocessor1_Model1
3 brier_class binary         0.153 Preprocessor1_Model1

Confusion matrix

tree_predictions <- tree_last_fit %>% collect_predictions()
conf_mat(tree_predictions,
truth = diabetes,
estimate = .pred_class) %>%
autoplot()

 Group Activity 1


  • Please clone the ca27-yourusername repository from Github
  • Please do problem 1 in the class activity for today

20:00

Random Forest

Random forests take decision trees and construct more powerful models in terms of prediction accuracy.

  • Repeated sampling (with replacement) of the training data to produce a sequence of decision tree models.

  • These models are then averaged to obtain a single prediction for a given value in the predictor space.

  • The random forest model selects a random subset of predictor variables for splitting the predictor space in the tree building process.

Model Specification

  • mtry: The number of predictors that will be randomly sampled at each split when creating the tree models
  • trees: The number of decision trees to fit and ultimately average
  • min_n: The minimum number of data points in a node that are required for the node to be split further

Model, Workflow and Hyperparameter Tuning

rf_model <- rand_forest(mtry = tune(),
                        trees = tune(),
                        min_n = tune()) %>%
            set_engine('ranger', importance = "impurity") %>%
set_mode("classification")

rf_workflow <- workflow() %>%
               add_model(rf_model) %>%
               add_recipe(db_recipe)

## Create a grid of hyperparameter values to test
set.seed(314)
rf_grid <- grid_random(mtry() %>% range_set(c(2, 7)),
                       trees(),
                       min_n(),
                       size = 15)

View Grid

rf_grid
# A tibble: 15 × 3
    mtry trees min_n
   <int> <int> <int>
 1     7   609    32
 2     5  1235     6
 3     4  1822    29
 4     5   678    16
 5     4   138    14
 6     3  1218    19
 7     7   228    14
 8     5   873     4
 9     6  1387    10
10     7  1717     5
11     5   436     4
12     3  1175    16
13     6  1909    33
14     6   118     4
15     2  1003    24

Tuning Hyperparameters with tune_grid()

# Tune random forest workflow
set.seed(314)

rf_tuning <- rf_workflow %>%
             tune_grid(resamples = db_folds,
                       grid = rf_grid)

## Select best model based on roc_auc
best_rf <- rf_tuning %>%
           select_best(metric = 'accuracy')

# View the best parameters
best_rf
# A tibble: 1 × 4
   mtry trees min_n .config
  <int> <int> <int> <chr>
1     2  1003    24 Preprocessor1_Model15

Finalize workflow

final_rf_workflow <- rf_workflow %>%
                     finalize_workflow(best_rf)

Variable Importance

rf_wf_fit <- final_rf_workflow %>%
             fit(data = db_train)

rf_fit <- rf_wf_fit %>%
          extract_fit_parsnip()

Variable Importance

vip(rf_fit)

 Group Activity 2



  • Please finish the remaining problems in the class activity for today

10:00
